SYSTEM
The Movement Intelligence Platform
SENSORS
IMU sensors embedded in insoles/orthotics/shoes capture precise movement asymmetries, loads, and variabilities across all movement types.
+
AI
Norman.ai creates movement signatures, detects activities automatically, flags deviations, and delivers actionable movement insights.

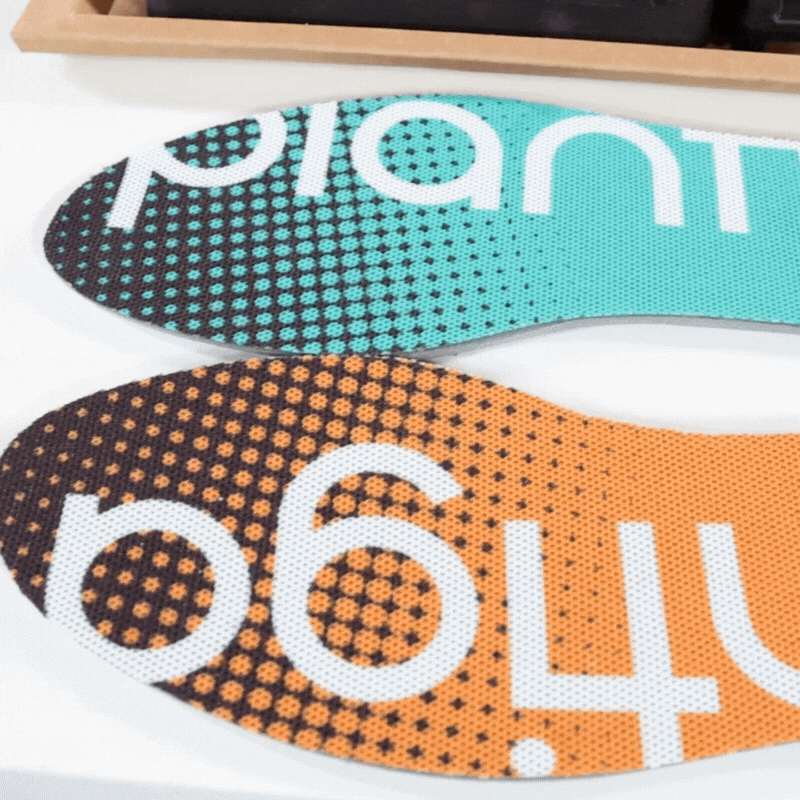

01. Fit
Remove existing insoles
Trim Plantiga insoles to the same size
Or – embed in custom orthotics
02. Collect
Put sensors in insoles
Put insoles in shoes
Go

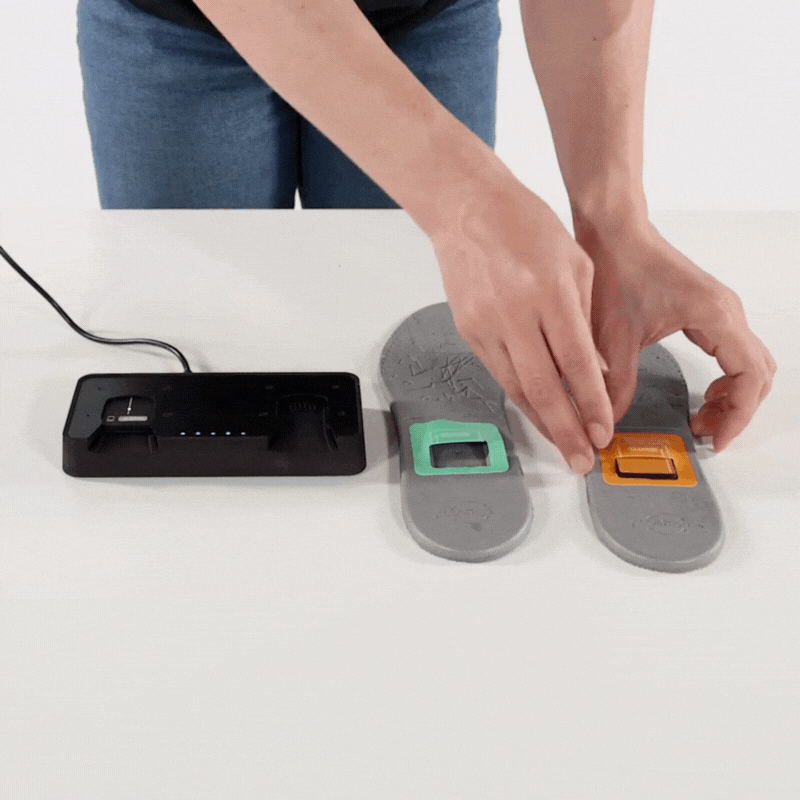

03. Upload
Take sensors out of shoes and put into dock
Automatic data upload to the cloud
Access data via Plantiga web app or API
04. Action
Return-to-play decisions
Injury prevention
Performance analysis
01. Fit
Remove existing insoles
Trim Plantiga insoles to the same size
Or – embed in custom orthotics
02. Collect
Put sensors in insoles
Put insoles in shoes
Go
03. Upload
Take sensors out of shoes and put into dock
Automatic data upload to the cloud
Access data via Plantiga web app or API
04. Action
Return-to-play decisions
Injury prevention
Performance analysis
Components

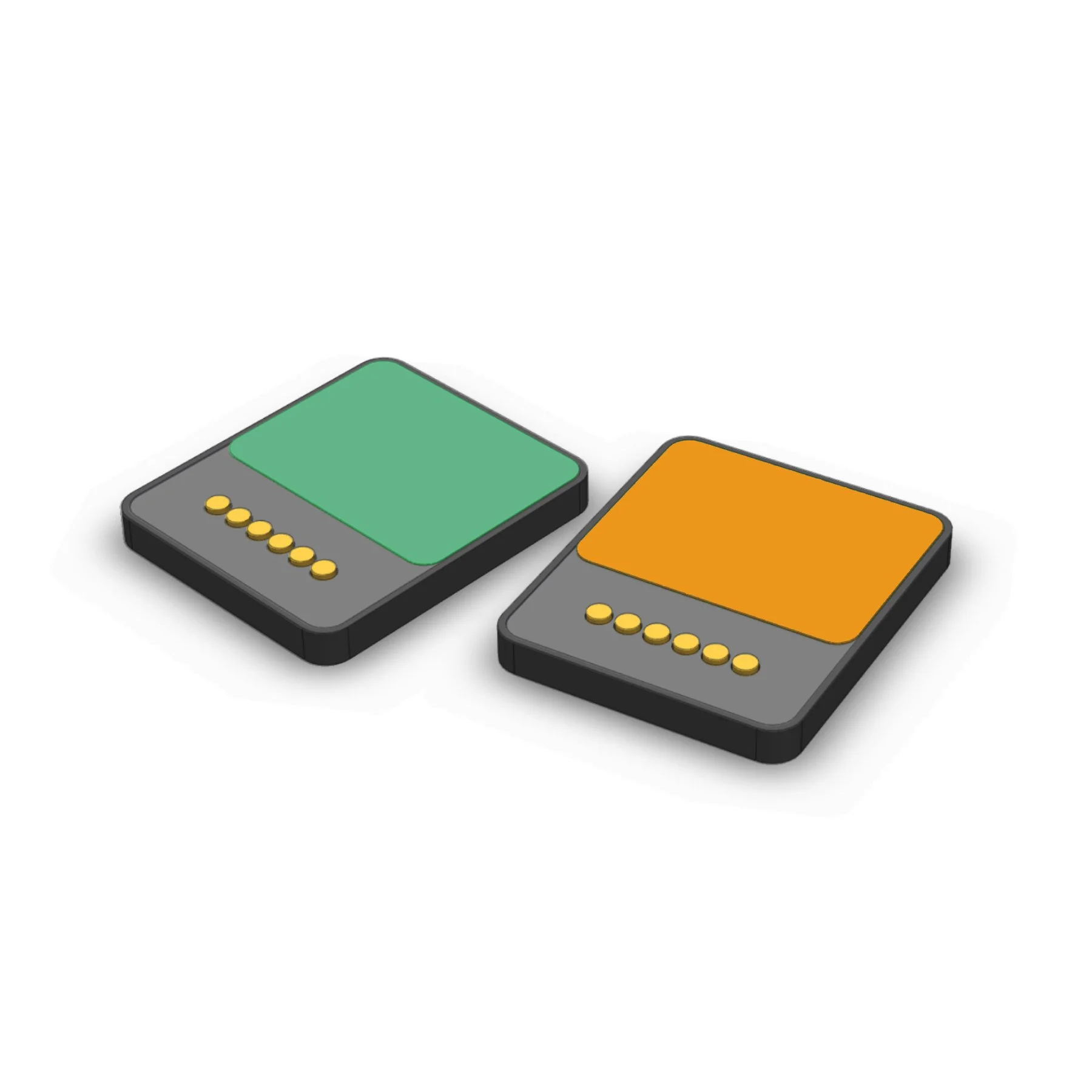

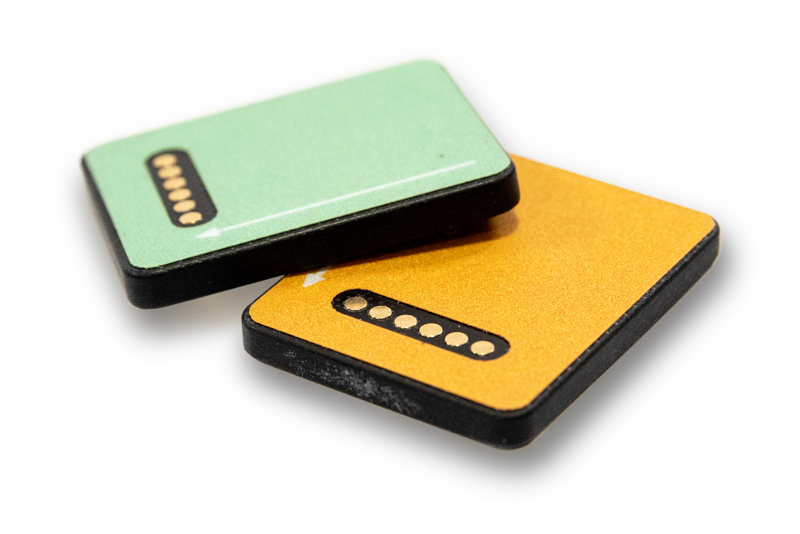

Pods
6-axis IMU
416 Hz sampling frequency
Local storage (8 hr recording time)
35.4mm x 28.8mm x 3.6mm
Water and impact resistant
Time synchronized

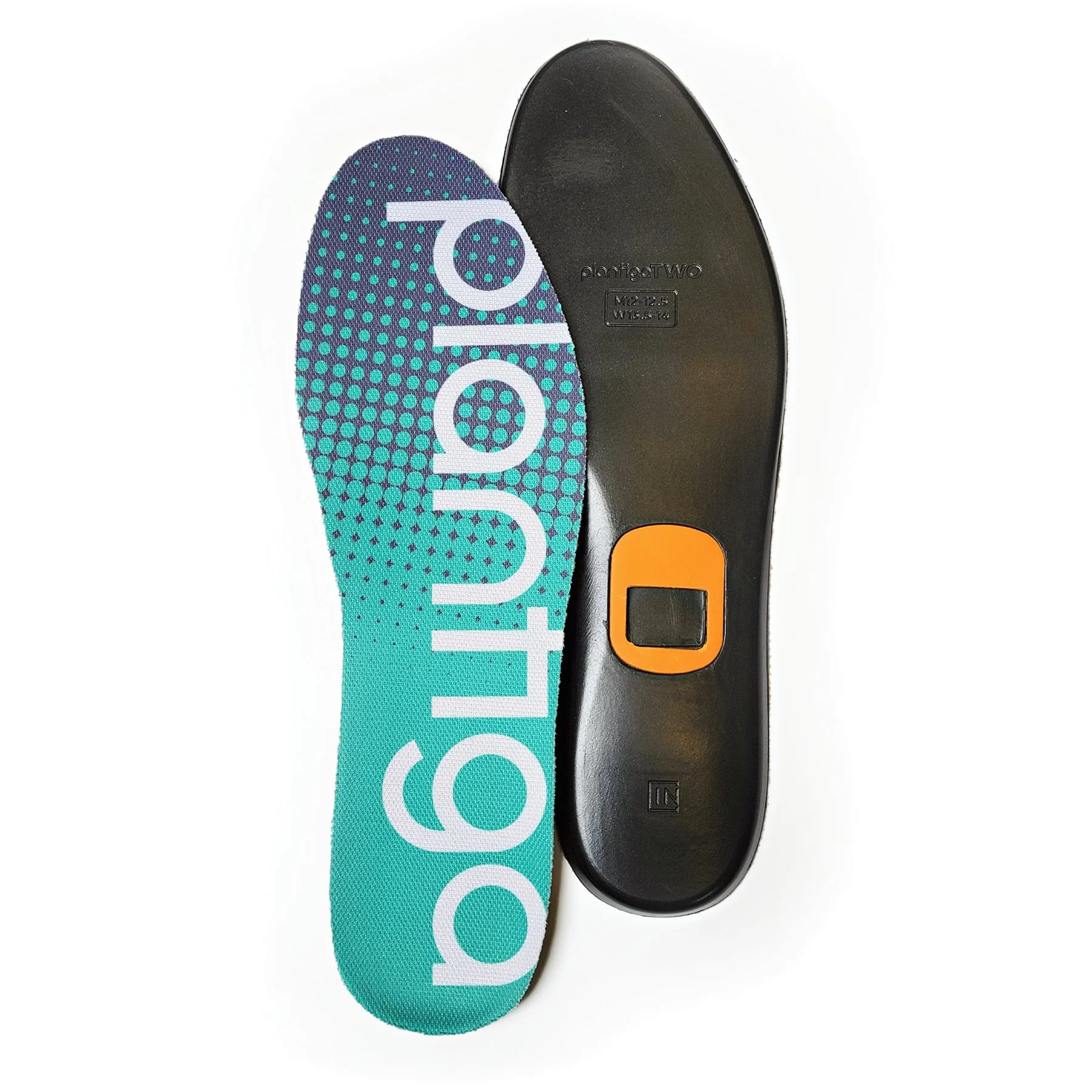

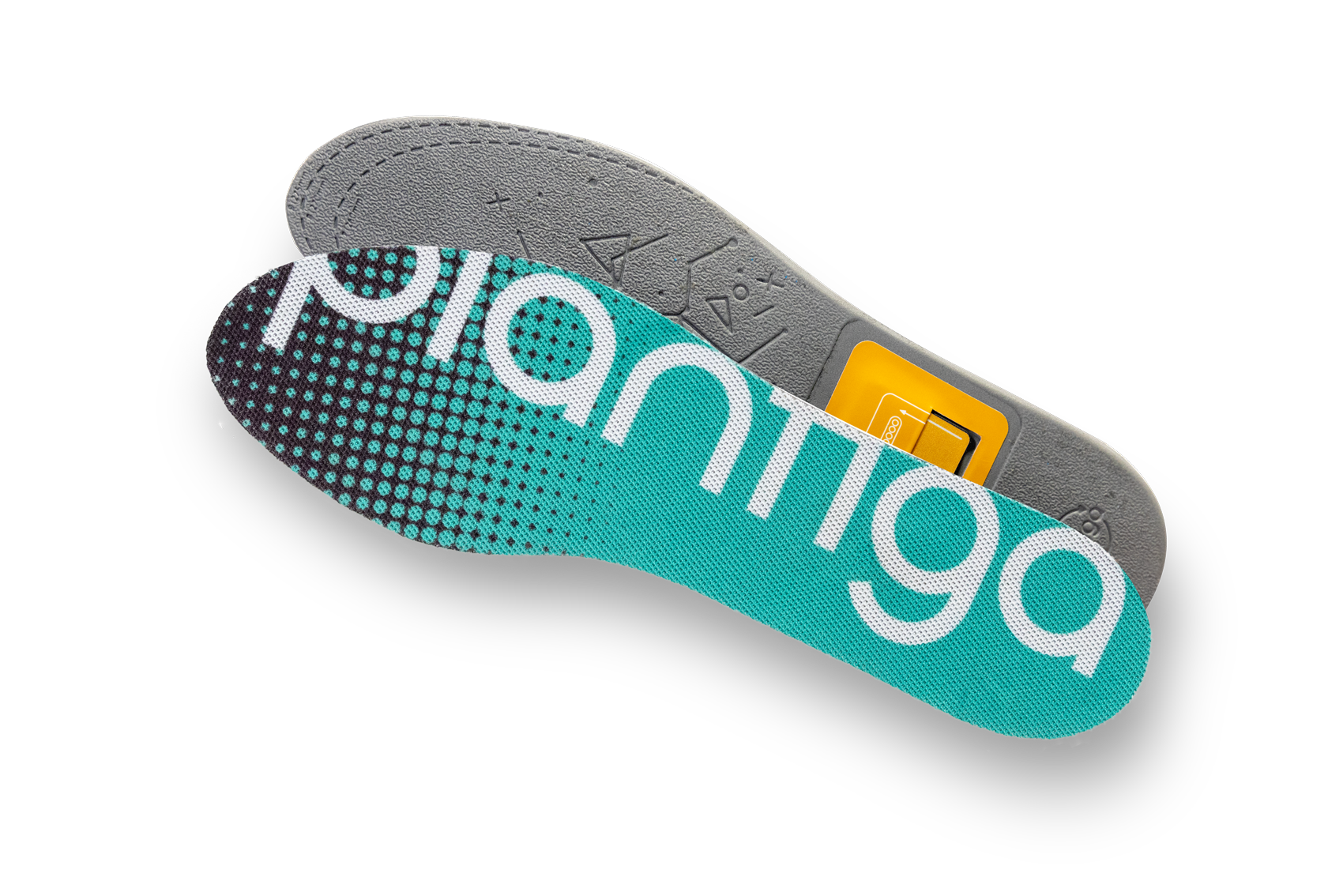

Insoles
Maintain consistent sensor placement
Supportive EVA foam
Trim to fit for custom sizing
Option by request: retrofit custom orthotic with pod pocket

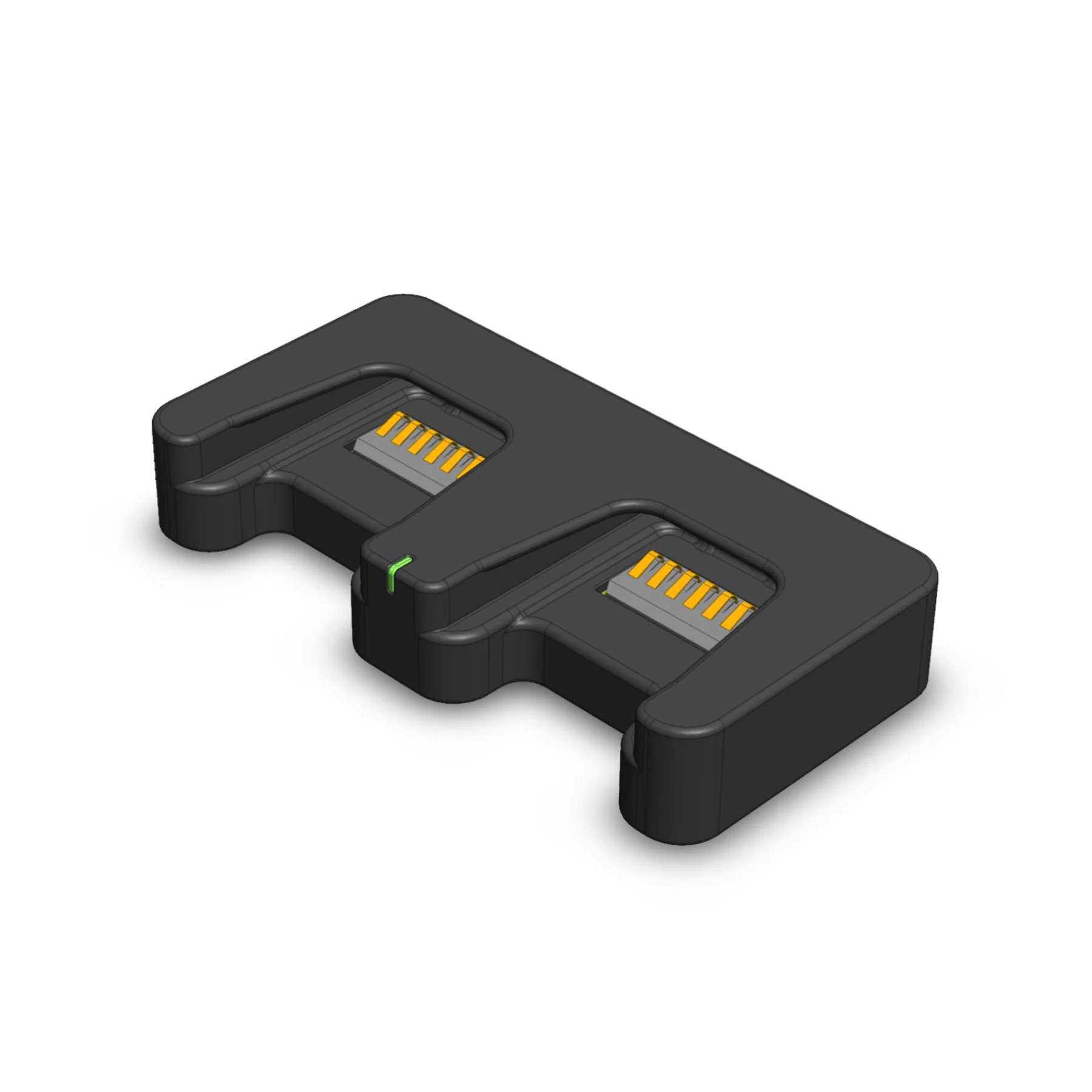

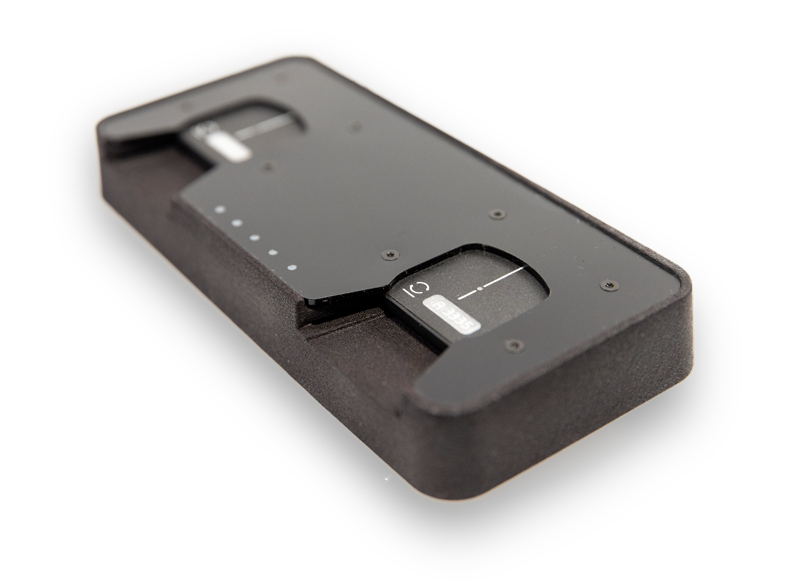

Dock
Secure physical connection for data upload and charging
Simultaneous charge and upload
2 hr time to full charge
Onboard LEDs indicate charge and upload status
Portable
Puts pods in sleep mode

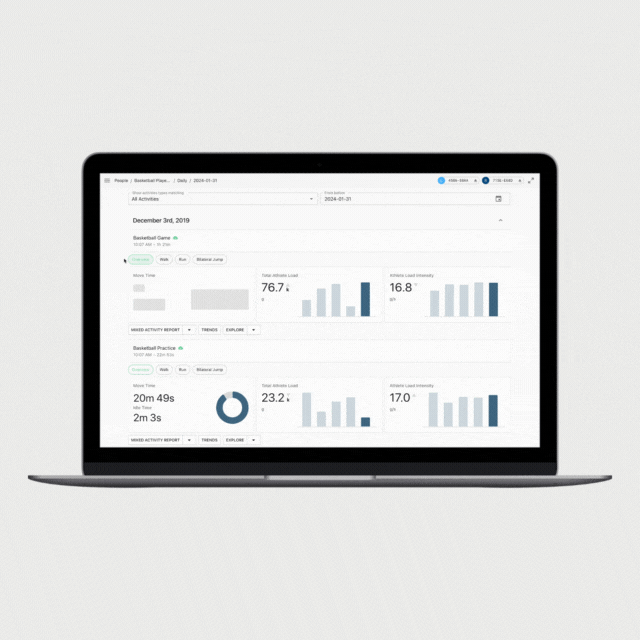

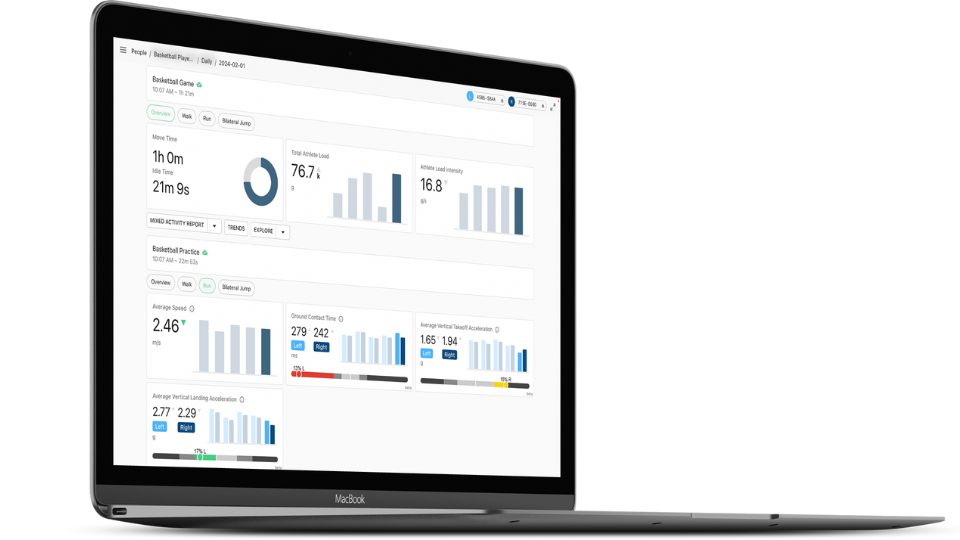

Software

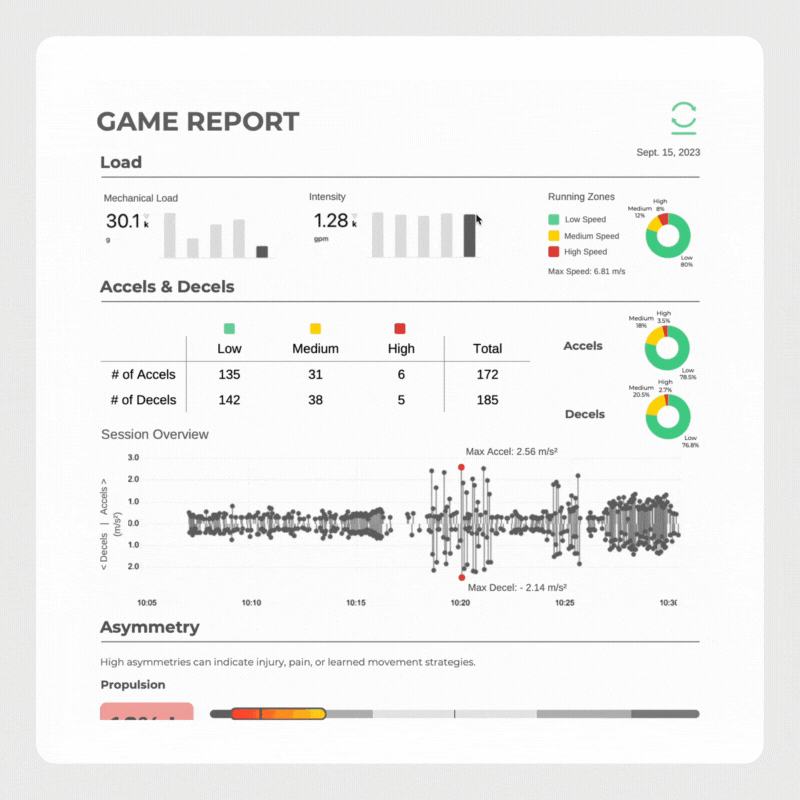

View, analyze, and download data
Trends over time
Step-by-step biomechanics
Customizable data views
Chrome, Firefox, and Safari compatible

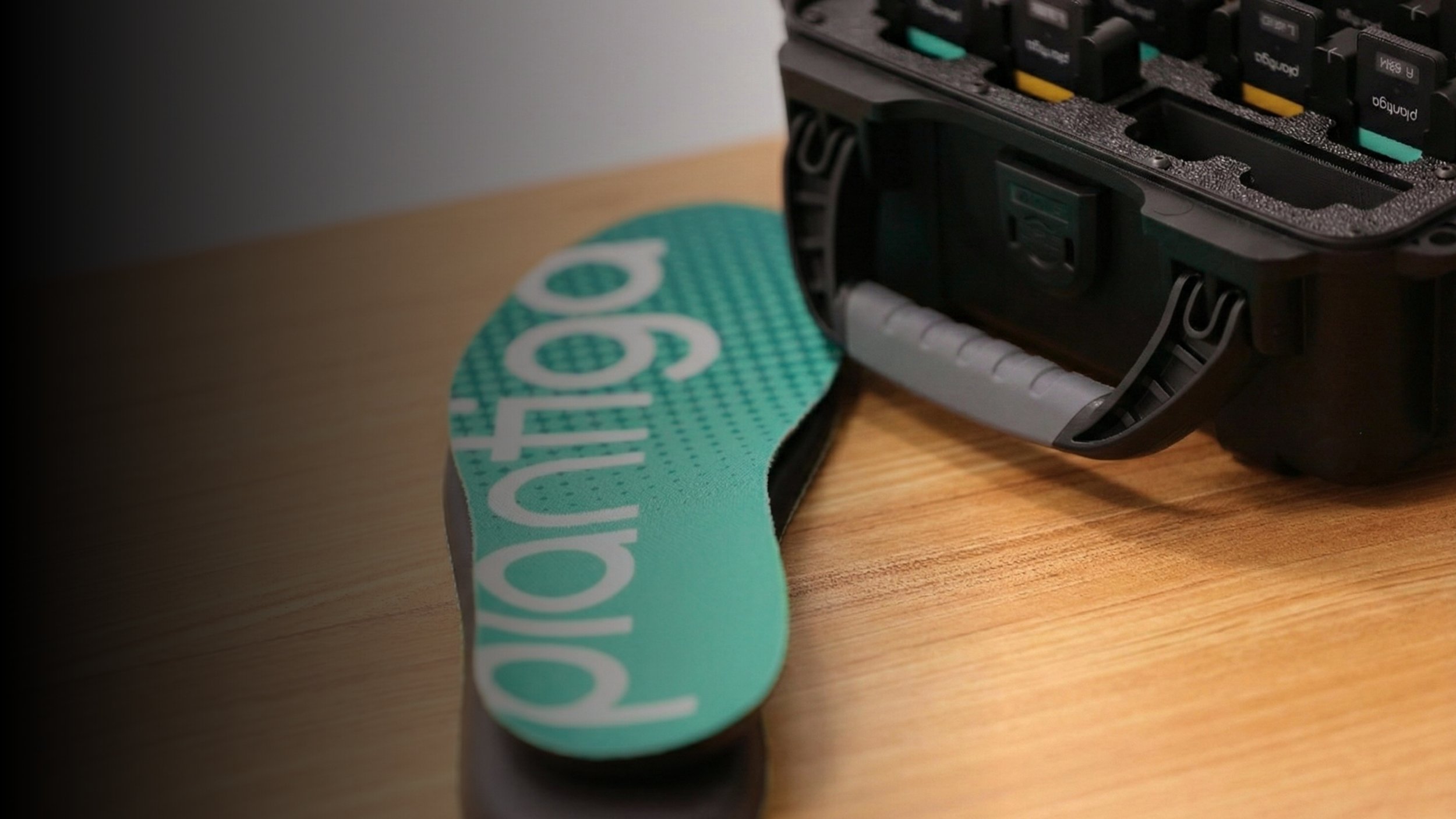

Case
Travel safe
